Pumps: 4 pcs
Syringes: 4 pcs
Syringe type Glass: Glass: Tricontinent 10366 (5 mL)
Disposable: Braun Injekt Luer Lock Solo (1 or 5 mL)
Syringes per reactor: up to 2
Smart automated dosing module

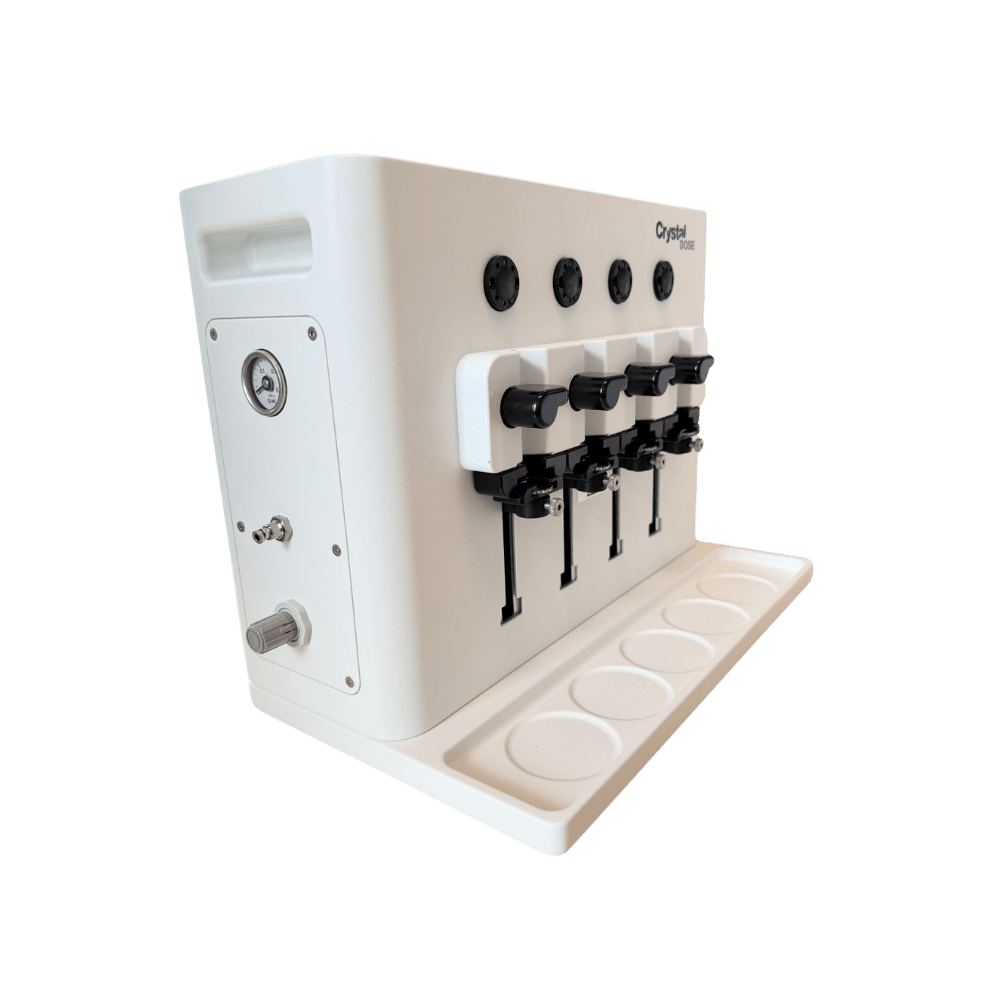

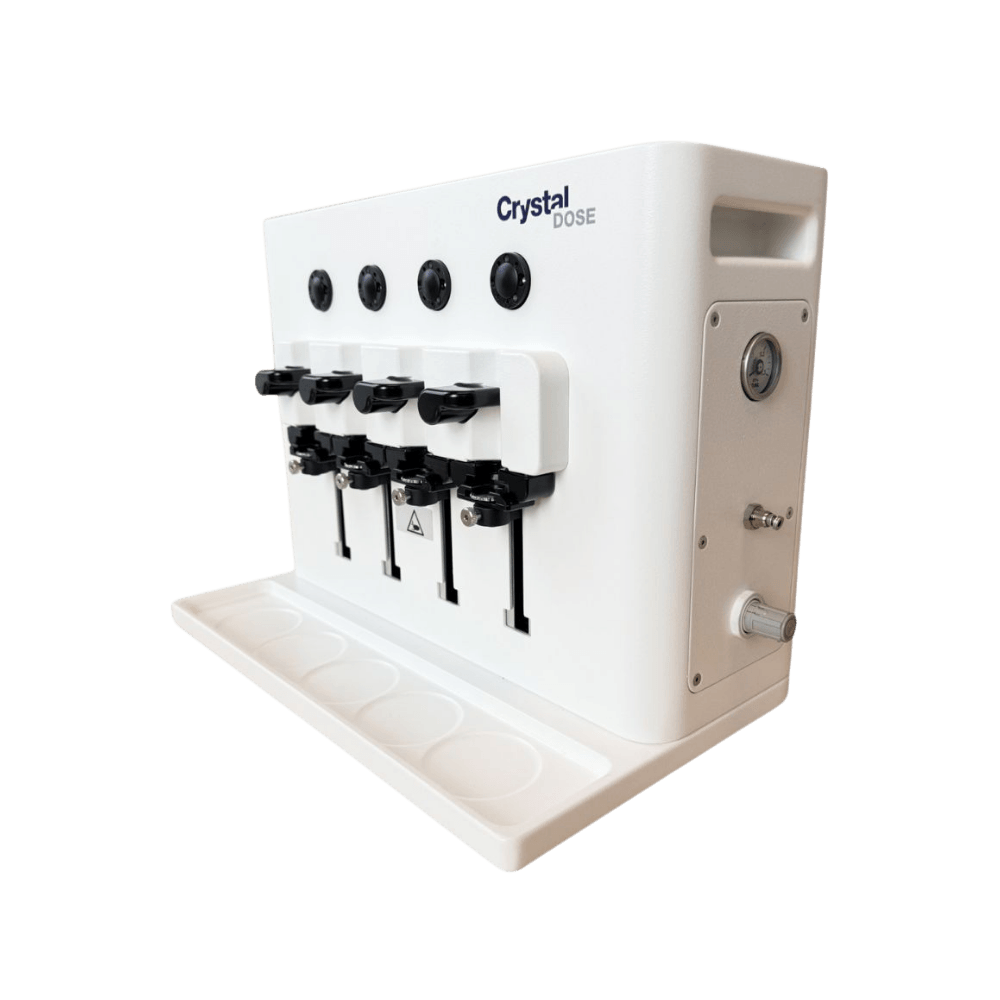

CrystalDOSE is an automated liquid dosing module specially designed for the Crystalline instrument, enabling precise and controlled solvent addition during crystallization experiments.

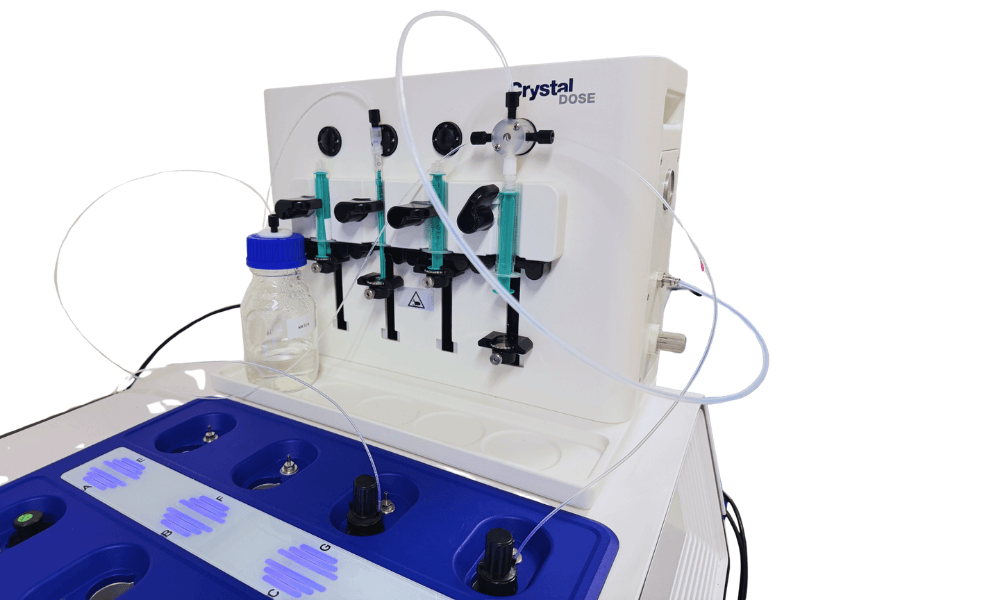

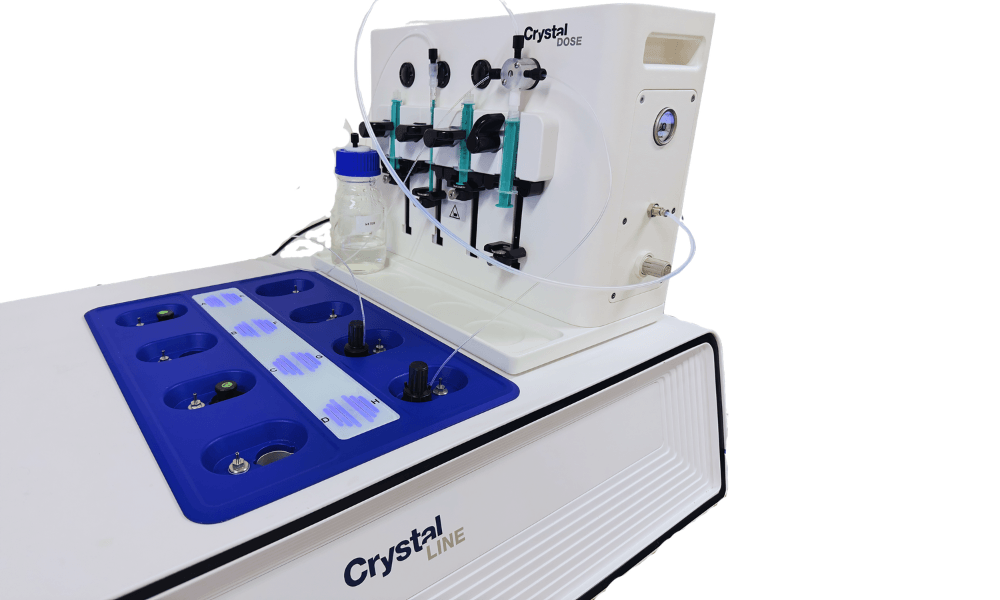

Each unit features four independently operated syringe pumps. Up to two units can be configured per Crystalline, providing up to eight dosing pumps. The system supports 1 mL disposable syringes and 5 mL disposable or glass syringes, with dosing volumes from 10 µL to 5,000 µL and dosing rates from 0.1 to 500 µL/s. Up to two syringes can be assigned to each reactor, enabling the controlled addition of two different liquids.
How does it work?
Dosing profiles can be programmed directly within the Crystalline software, providing flexible and reproducible control of complex crystallization workflows, with precise control over dosing volume and addition rate. Precise solvent addition supports antisolvent crystallization, seed slurry addition, acid/base dosing for pH adjustment, and other controlled-addition processes.
Accurate dosing enables researchers to investigate how addition rate, composition, and timing influence nucleation, crystal growth, particle size, morphology, and polymorphic form.
Want to learn more?
Specifications
Syringe volume: 10 – 5,000 µL
Dosing rate: 0.1 – 500 µL/s
Temperature range: 10 - 30 ºC
Humidity range: 20 - 80 %
Purge gas:
Valves, fittings, tubing system: Push-in fitting 8 mm
Maximum inlet pressure purge: 6 bar
Gas flow: –
Inserted gas type: Dry nitrogen
Power Input 24 VDC: 180 W / 7.5 A
